Engine, Electrical



 Mansfield Restoration Parts LLC ~ (508) 339-5409

 SECTION VI
 Year Application Description Price Condition Pkg.

 Item Picture
DISTRIBUTOR & RELATED PARTS
basic 12127

67

390GT

DISTRIBUTOR, with 4 speed transmission, single diaphragm vacuum advance
(#C7OF-J)

 call for avail

ORIG

ea.

68 428 PI DISTRIBUTOR, Shelby GT500, with 4 speed or C6 transmission, single diaphragm vacuum advance,
(#C8AF-J)		 call for avail ORIG ea.

68/69 390GT/428CJ/SCJ DISTRIBUTOR, with 4 speed or C6 transmission, single or dual diaphragm vacuum advance,
(#C8OF-D)		 call for avail ORIG ea.

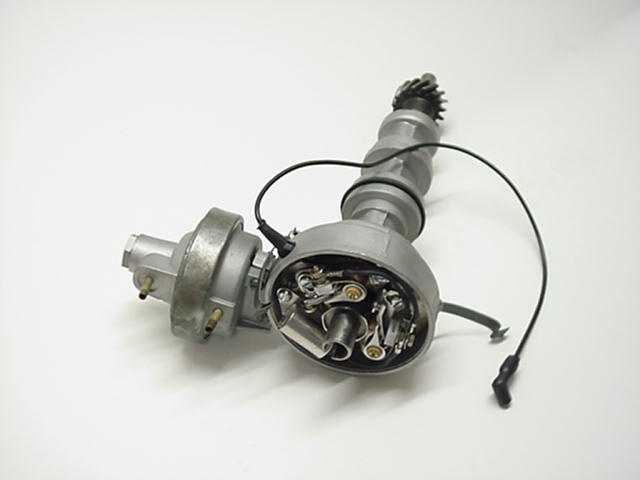

69 428CJ/SCJ DISTRIBUTOR, with 4-speed transmission, dual diaphragm vacuum advance
(#C8OF-H)		 call for avail ORIG ea.

69 428CJ/SCJ DISTRIBUTOR, with C6 transmission, single diaphragm vacuum advance
(#C8OF-J)		 call for avail ORIG ea.

70 428CJ/SCJ DISTRIBUTOR, with 4-speed transmission, dual diaphragm vacuum advance
(#DOZF-C)		 call for avail ORIG ea.

70 428CJ/SCJ DISTRIBUTOR, with C6 transmission, single diaphragm vacuum advance
(#DOZF-G)		 call for avail ORIG ea.

basic 12106
57/70 390GT/428CJ/SCJ DISTRIBUTOR CAP Correct original design, Black, "Made in U.S.A." $ 16.50 American Repro

ea.

basic 12216
67/70 390GT/428CJ/SCJ DISTRIBUTOR PRIMARY WIRE, single point distributors, correct white connector & "Autolite" logo $ 25.50 American Repro

ea.

69/70 428CJ/SCJ
427/Boss 302/429		 DISTRIBUTOR PRIMARY WIRE, dual point distributors, correct orange connector & "Autolite" logo $ 28.50 American Repro

ea.

67 428PI Shelby DISTRIBUTOR PRIMARY WIRE, for 427 "C5AF-E" dual point distributor, correct black spade connector $ 21.50 American Repro

ea.

67/70 390GT/428CJ/SCJ DISTRIBUTOR PRIMARY WIRE, all single point distributors, black connector, Motorcraft replacement $ 12.50 N.O.S.

ea.

basic 12270
67/70 390GT/428CJ/SCJ DISTRIBUTOR HOLD DOWN CLAMP, correct for all 390/428PI, 428CJ/SCJ
p/n B8A-12270-A		 $ 13.70 ORIG

ea.

MANSFIELD MUSTANG OFFERS COMPLETE IN-HOUSE DISTRIBUTOR REBUILDING USING ONLY ORIGINAL /NOS PARTS AND DISTRIBUTOR RE-CALIBRATION USING FULLY RESTORED SUN DISTRIBUTOR MACHINE THAT ALLOWS US TO SET YOUR DISTRIBUTOR TO ORIGINAL FACTORY SPECIFICATIONS.

Distributor Before: Distributor After:
IGNITION & RELATED PARTS
basic 12029
67/70 All COIL, correct moulded Yellow Top, new design, does not have high failure rate problem of earlier reproductions $ 34.50 Repro ea.

basic 12043
67/70 All COIL BRACKET, mounts on intake manifold $ 34.50 ORIG ea.

basic 10316
67 390GT/428 VOLTAGE REGULATOR, Black cover with correct yellow "Autolite" stamping w/AC and/or 45 or 55 amp alternator
(#C5TF-1A)		 $ 37.95 REPRO ea.

67 390GT/428 VOLTAGE REGULATOR, Black cover with correct silver Autolite" stamping, wo/AC and/or 38 or 42 amp alternator
(#C5AF-A)		 $ 37.95 REPRO ea.

68/69 390GT VOLTAGE REGULATOR, Blue cover with correct Silver "Autolite" stamping, with 45 Amp. alternator, without AC
(#C8AF-A)		 $ 37.95 REPRO ea.

68/70 390GT/428CJ/SCJ VOLTAGE REGULATOR, Blue cover with correct Yellow "Autolite" stamping, with 55Amp. Alternator, with and without AC
(#C8TF-A)		 $ 37.95 REPRO ea.

70 428CJ/SCJ VOLTAGE REGULATOR, Blue cover with correct Silver "Autolite" stamping, after 5/70 with 45Amp. alternator, without AC
(#DOAF-A)		 $ 37.95 REPRO ea.

basic 10A506
67/70 All VOLTAGE REGULATOR RAIN GUTTER KIT, original, includes 2 correct attaching screws $ 15.00 ORIG ea.

basic 12259
67/69 390 GT SPARK PLUG WIRE SET, correct "Autolite" orange boots, heat jackets, and lettering, various date codes available $ 44.95 American Repro ea.

68/70 428CJ/SCJ SPARK PLUG WIRE SET, correct "Autolite" orange boots, heat jackets and lettering, various date codes available $ 44.95 American Repro ea.

basic 12297
67/70 390GT/428CJ/SCJ PLUG WIRE SEPARATORS, attaches to valve cover,
2 required		 $ 3.50 N.O.S. ea.

67/70 390GT/428CJ/SCJ PLUG WIRE SEPARATORS, free standing, combed shape, 2 required $ 1.00 N.O.S. ea.

ALTERNATOR RELATED PARTS
basic 10A310
67/69 390/428CJ/SCJ ALTERNATOR FAN, original re-dyed zinc dichromate,
13 blades, 67 thru Oct 69		 $ 25.00 ORIG ea.

69/70 390/428CJ/SCJ ALTERNATOR FAN, original re-dyed zinc dichromate,
10 blades, Nov. 69 thru 73		 $ 25.00 ORIG ea.

basic 10344
67/70 390/428CJ/SCJ ALTERNATOR PULLEY, single belt, or with a/c, re-dyed zinc dichromate $ 20.00 ORIG ea.

67/70 390/428CJ/SCJ ALTERNATOR PULLEY, dual belts, or without a/c, re-dyed zinc dichromate $ 20.00 ORIG ea.

basic 10A370
67/70 390/428CJ/SCJ ALTERNATOR SPACER, new correct material , pink etching acid dyed $ 14.95 American Repro ea.

basic 10A375-A
68/70 All ALTERNATOR TERMINAL COVERS, round covers attach to alternator harness at alt., qty. 3, (p/n C7AZ-10A375-A) $ 5.25 American Repro set.

Heavy Duty Style ~ Standard Style
basic 11450
67/70 390/428CJ/SCJ STARTER RELAY, standard solenoid , correct C7AE-A Autolite, made from original tooling $ 30.95 American Repro ea.

67/68 428GT500/428CJ STARTER RELAY, round body, heavy duty solenoid , correct C7AE-A Autolite call fo avail ORIG ea.

69/70 428CJ/SCJ STARTER RELAY, round body, heavy duty solenoid , correct C9AE-A Autolite call for avail ORIG ea.

basic 14448
67/68 Shelby GT350/500 TERMINAL JUNCTION BLOCK, correct black color, Correct "C5VB-14448-A" markings $ 37.95 American Repro set

BATTERY & RELATED PARTS
basic 10653
67/70 302, Boss 302, 351W, 351C
without AC & X-Cooling options
without AC & X-Cooling options		 BATTERY, G24FA AUTOLITE, Maintenance Free type, correct detailed case, inked markings & colors
4 year warranty, first year free replacement, remaining years pro- rated
CA/@32F = 780 cranking amps.
CCA/@0F = 700 cranking amps		 $ 269.95 American Repro each

67/68 Shelby GT500, Mustang, Cougar Fairlane/Torino with 428PI, 428CJ BATTERY, G24FA AUTOLITE, Maintenance Free type, correct detailed case, inked markings & colors
4 year warranty, first year free replacement, remaining years pro- rated
CA/@32F = 780 cranking amps.
CCA/@0F = 700 cranking amps		 $ 269.95 American Repro each

69/70 428CJ/SCJ/429CJ,
351 with AC & X-Cooling options		 BATTERY, G27FA AUTOLITE, Maintenance Free type, correct detailed case, inked markings & colors
4 year warranty, first year free replacement, remaining years pro- rated
CA/@32F = 830 cranking amps.
CCA/@0F = 750 cranking amps		 $ 289.95 American Repro each

basic 14300 / 14301 / 14431
67 390GT BATTERY CABLE SET, 3 piece, correct inked markings, color, cable gauge & length, ends & terminals
p/n BC-3		 $ 57.00 American Repro set

68/69 390GT BATTERY CABLE SET, 3 piece, correct inked markings, color, cable gauge & length, ends & terminals
p/n BC-4		 $ 57.00 American Repro set

68/69 428CJ/SCJ BATTERY CABLE SET, 3 piece, correct inked markings, color, 6 gauge cable & length, ends & terminals
p/n BC-4A		 $ 57.00 American Repro set

68/69 428CJ/SCJ BATTERY CABLE SET, HEAVY DUTY SET
3 piece, correct inked markings, color, length & terminals
cable is thicker 4 gauge instead of the thinner original 6 gauge
material that was prone to heating up
p/n BC-4B-HD		 $ 59.00 American Repro set

70 428CJ/SCJ BATTERY CABLE SET, 3 piece, correct inked markings, color, cable gauge & length, ends & terminals
p/n BC-6		 $ 57.00 American Repro set

basic 10732
69/70 390/428CJ/SCJ
351 with AC & X-Cooling options		 BATTERY TRAY & BRACKET ASSY
27 series Heavy Duty battery tray assembly
for Mustang, Cougar and Shelby GT350/500
made in the USA by Mansfield Mustang to orig. Ford Specs
P/N C9ZZ-10732-AR		 $ 89.95 American Repro ea.

basic 16060
67 all engines
all battery size's		 FRONT APRON BATTERY TRAY LOWER REINFRORCEMENT BRACKET
correct with 22 & 24 series batteries for Mustang, Cougar and Shelby GT350/500
made in the USA by Mansfield Mustang to orig. Ford Specs
includes attaching bolts
P/N C7ZZ-16060-AR		 $ 29.95 American Repro ea.

68 all engines
all battery size's		 FRONT APRON BATTERY TRAY LOWER REINFRORCEMENT BRACKET
correct with 22 & 24 series batteries for Mustang, Cougar and Shelby GT350/500
made in the USA by Mansfield Mustang to orig. Ford Specs
includes attaching bolts
P/N C8ZZ-16060-AR		 $ 31.95 American Repro ea.

69/70 all engines
all battery size's		 FRONT APRON BATTERY TRAY LOWER REINFRORCEMENT BRACKET
correct with 22, 24 & 27 series batteries for Mustang, Cougar and Shelby GT350/500
made in the USA by Mansfield Mustang to orig. Ford Specs
includes attaching bolts
P/N C9ZZ-16060-AR		 $ 32.95 American Repro ea.

basic 10A682
69/70 all engines
with 27 Series battery		 BATTERY HEAT SHIELD
correct with 27 series batteries for Mustang & Cougar also correct for 69/70 Shelby GT350/500
(p/n C7OZ-10A682-A)		 $ 67.50 American Repro ea.

basic 10718
67/69 all engines
all battery size's		 BATTERY HOLD DOWN
correct with 22, 24 & 27 series batteries for Mustang & Cougar also correct for 69/70 Shelby GT350/500
(p/n C5AZ-10718-A)		 $ 76.00  N.O.S. ea.

70 all engines
all battery size's		 BATTERY HOLD DOWN
correct with 22, 24 & 27 series batteries for Mustang & Cougar
(p/n D0DZ- 10718-AR)		 $ 24.95 American Repro ea.

 basic 10756
67/70 390/428CJ/SCJ BATTERY HOLD BRACKET RODS, includes 2 correct nuts, sold in sets of 2 $ 12.00 N.O.S. pair

 basic 14302

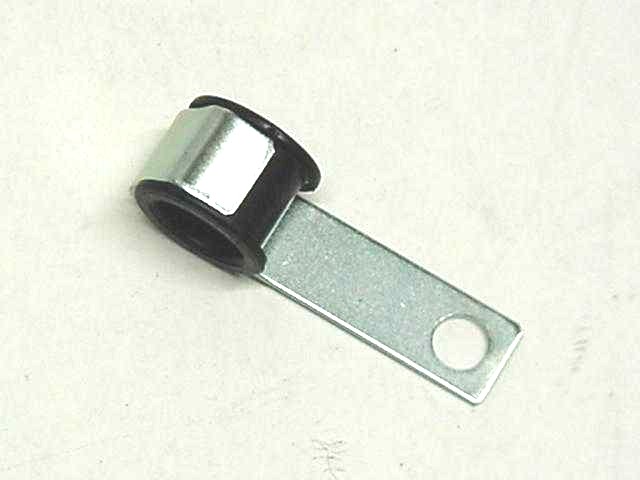

68/70 302, 351 STARTER CABLE LOWER BRACKET, twisted , attaches to motor mount, includes rubber grommet, CB-2 $ 7.50 American Repro ea.

68/70 390/428CJ/SCJ STARTER CABLE LOWER BRACKET, straight , attaches to motor mount, includes rubber grommet, CB-1 $ 7.50 American Repro ea.

 basic 14303
67 390/428 ENGINE GROUND WIRE, grounds engine to firewall, correct inked markings
(#FAB-A)		 $ 12.50 American Repro ea.

68/69 390/428CJ/SCJ ENGINE GROUND WIRE, grounds engine to firewall, correct inked markings
(#C8WB-A)		 $ 12.50 American Repro ea.

HEATER MOTOR SHIELD
basic 19C482
67/70 390GT/428CJ/SCJ HEATER MOTOR SHIELD, required to protect heater motor when installing engine, w/o AC call for avail ORIG ea.
