Engine, Electrical



CONCOURSE CORRECT, AS ORIGINAL IN APPEARANCE, FIT AND WIRE COLOR CODES

 Mansfield Restoration Parts LLC ~ (508) 339-5409

 SECTION VI
 Year Application Description Price Condition Pkg.

 Item Picture
HEADLIGHT BULBS
basic 13007
64-73

ALL FORD PRODUCTS


ALL with 2 headlight system,HI/LO sealed beam
obsolete incandescent American made with etched "made for FOMOCO" in the center as original factory installed bulbs
industry # 6014
(original p/n CODZ-13007- A
call for available manufacturers

$ 34.95
 American Repro

ea.

64-73

ALL FORD PRODUCTS


ALL with 4 headlight system,HI/LO outer sealed beam
obsolete incandescent American made with etched "made for FOMOCO" in the center as original factory installed bulbs
industry # 4000
(original p/n D2AZ-13007-A
call for available manufacturers

$ 34.95
 American Repro

ea.

64-73

ALL FORD PRODUCTS


ALL with 4 headlight system,HI inner sealed beam
obsolete incandescent American made with etched "made for FOMOCO" in the center as original factory installed bulbs
industry # 5001
(original p/n D2AZ-13007-B
call for available manufacturers

$ 34.95
 American Repro

ea.

INSTRUMENT CLUSTER AND UNDER DASH WIRE HARNESS
basic 14401
67

ALL

Mustang & Shelby GT350/500, fastback, complete
under dash harness with factory tachometer
includes new fuse box
(p/n ELE-067-206)

$ 650.00
 American Repro

ea.

67

ALL

Mustang coupe & fastback, complete
under dash harness without tachometer
includes new fuse box
(p/n ELE-067-206.1)

$ 650.00
 American Repro

ea.

67

ALL

Mustang coupe & fastback, complete
instrument cluster gauge & indicator lite harness
(p/n ELE-067-205)

$ 185.00
 American Repro

ea.

68

ALL

Mustang & Shelby GT350/500, fastback, main
under dash harness with factory tachometer
includes new fuse box
(p/n ELE-068-208)

$ 650.00
 American Repro

ea.

68

ALL

Mustang coupe & fastback, main
under dash harness without factory tachometer
includes new fuse box
(p/n ELE-068-208.1)

$ 650.00
 American Repro

ea.

68

ALL

Mustang coupe & fastback, complete
instrument cluster gauge & indicator lite harness
(p/n ELE-068-205)

$ 185.00
 American Repro

ea.

69

ALL

Mustang coupe & fastback main
under dash harness with factory tachometer
with/without Air Conditioning
includes new fuse box
(p/n ELE-069-206)

$ 725.00
 American Repro

ea.

69

ALL

Mustang coupe & fastback main
under dash harness without factory tachometer
with/without Air Conditioning
includes new fuse box
(p/n ELE-069-206.1)

$ 725.00
 American Repro

ea.

70

ALL

Mustang, coupe & fastback main
under dash harness with factory tachometer
with/without Air Conditioning
includes new fuse box
(p/n ELE-070-206)

$ 825.00
 American Repro

ea.

69/70

SHELBY GT350/500

Shelby GT350/500 Main under dash
harness with factory tachometer
with/without Air Conditioning
includes new fuse box
also requires Shelby "Auxilary" under dash harness
(p/n ELE-069-206)

$ 725.00
 American Repro

ea.

69/70

SHELBY GT350/500

Shelby GT350/500 "Auxilary" under dash
harness with factory tachometer
with/without Air Conditioning
includes new fuse box
(p/n ELE-069-206.2)

$ 185.00
 American Repro

ea.

69

ALL

Mustang & Shelby GT350/500
Clock and optional map light harness
(p/n ELE-069-207)

$ 29.95
 American Repro

ea.

70

ALL

Mustang
Clock and optional map light harness
(p/n ELE-070-207)

$ 29.95
 American Repro

ea.

 ENGINE COMPARTMENT AND HEADLIGHT HARNESS
  basic 14290

67

ALL

Mustang, without Factory Tachometer, non GT
(p/n ELE-067-228)

$ 189.95
 American Repro

ea.

67

ALL

Mustang, without Factory Tachometer, with GT option
(p/n ELE-067-227)

$ 179.95
 American Repro

ea.

67

ALL

Mustang, with Factory Tachometer, non GT

$ 184.95
 American Repro

ea.

67

ALL

Mustang, with Factory Tachometer, with GT options
(p/n ELE- 067-229)

$ 195.95
 American Repro

ea.

68

ALL

Mustang, without Factory Tachometer, non GT
(p/n ELE-068-208.1)

$ 189.95
 American Repro

ea.

68

ALL

Mustang, without Factory Tachometer, with GT option

$ 209.95
 American Repro

ea.

68

ALL

Mustang, with Factory Tachometer, non GT

$ 198.95
 American Repro

ea.

68

ALL

Mustang, with Factory Tachometer, with GT options
(p/n ELE-068-208)

$ 219.95
 American Repro

ea.

69

ALL

Mustang, without Factory Tachometer
(p/n ELE-069-209)

$ 229.95
 American Repro

ea.

69

ALL

Mustang, with Factory Tachometer
( p/n ELE-069-208)

$ 239.95
 American Repro

ea.

70

ALL

Mustang, all without sport lamps
(p/n ELE-070-209)

$ 239.95
 American Repro

ea.

70

ALL

Mustang, all with sport lamps (MACH 1)
(p/n ELE-070-208)

$ 254.95
 American Repro

ea.

"DRAG PACK" option, HORN JUMPER WIRE
69/70

428SCJ/B302/B429

Mustang, Horn Jumper Wire, required with both horns mounted on right side of radiator support
(p/n ELE-690-220)

$ 15.00
 American Repro

ea.

AIR CONDITIONER COMPRESSOR CLUTCH FEED HARNESS
69/70

ALL

Mustang, AC Compressor Clutch feed harness,
(p/n ELE-690-207)

$ 7.50
 American Repro

ea.

HEADLIGHT EXTENSION HARNESS
basic 13076
67/68

ALL

Mustang, headlight extension harness, 2 required
(p/n ELE-067-227.1)

$ 18.50
 American Repro

ea.

67 Shelby

GT350 & GT500

Mustang, inboard headlight extension harness, 2 required
(p/n ELE-067-230)

$ 24.50
 American Repro

ea.

69

ALL

Mustang, headlight extension harness, 2 required
(p/n ELE-069-319)

$ 18.50
 American Repro

ea.

70

ALL

Mustang, headlight extension harness, 2 required
(p/n ELE-070-319)

$ 14.50
 American Repro

ea.

69/70

GT350/500

Shelby, headlight extension harness, 2 required
(p/n ELE-070-319)

$ 14.50
 American Repro

ea.

ENGINE GAUGE HARNESS & IGNITION HARNESS
basic 14289
67/68 390GT/428CJ Mustang, for coil/ignition, oil pressure and water temperature gauge feeds, all correct color codes
(p/n EH-5)		 $ 29.95 American Repro

ea.

69 390GT/428CJ/SCJ Mustang, for coil/ignition, oil pressure and water temperature gauge feeds, all correct color codes
(p/n EH-10)		 $ 29.95 American Repro

ea.

70 390GT/428CJ/SCJ Mustang, for coil/ignition, oil pressure and water temperature gauge feeds, all correct color codes
(p/n EH-7)		 $ 29.95 American Repro

ea.

CONSOLE WIRING HARNESS
basic
67/68 SHELBY GT350/500 Ampere Gauge feed from engine compartment to console mounted gauge, all correct connectors & color codes
(p/n ELE-678-210)		 $ 39.95 American Repro

ea.

68 SHELBY GT350/500 Console wire harness's (4), all correct connectors & color codes
(p/n ELE-068-212)		 $ 45.95 American Repro

ea.

68 SHELBY GT500 Oil Pressure Gauge to Engine oil sender extension, all correct connectors & color codes
(p/n ELE-068-213)		 $ 39.95 American Repro

ea.

69 Mustang Console wire harness, includes cigar lighter connections, correct connectors & color codes
(p/n ELE-069 -215)		 $ 34.95 American Repro

ea.

69/70 GT350/500 Shelby unique under console wire harness
includes gauges, instrument lights, cigar lighter connections,
correct connectors & color codes
(p/n ELE-069-216)		 $ 110.00 American Repro

ea.

ALTERNATOR HARNESS
basic 14304
67/68 390/428 Mustang, voltage regulator to alternator without factory tachometer, without dogbone connector
(p/n AH-1)		 $ 34.95 American Repro

ea.

67/68 390/428 Mustang, voltage regulator to alternator with factory tachometer, without dogbone connector
(p/n AH-2)		 $ 59.95 American Repro

ea.

68 1/2 428CJ Mustang, voltage regulator to alternator with factory tachometer, with dogbone connector
(p/n AH-7)		 $ 74.95 American Repro

ea.

69 390/428CJ/SCJ Mustang, voltage regulator to alternator without factory tachometer, with dogbone connector
(p/n AH-3)		 $ 34.95 American Repro

ea.

69 390/428CJ/SCJ Mustang, voltage regulator to alternator with factory tachometer, with dogbone connector
(p/n AH-4)		 $ 59.95 American Repro

ea.

70 428CJ/SCJ Mustang, voltage regulator to alternator without factory tachometer, with dogbone connector
(p/n AH-5)		 $ 45.95 American Repro

ea.

70 428CJ/SCJ Mustang, voltage regulator to alternator with factory tachometer, with dogbone connector
(p/n AH-6)		 $ 74.95 American Repro

ea.

basic 10A375-A
68/70 All ALTERNATOR (Dogbone)TERMINAL COVERS, round covers attach to alternator harness at alt., kit qty. 3,
(p/n C7AZ-10A375-A)		 $ 5.25 American Repro

set

TAIL LAMPS HARNESS
basic 14405
67 Mustang Coupe and Convertible All rear lights and gas gauge, without low fuel warning
includes tail lamp sockets
(p/n EWL-067-361)		 $ 159.95 American Repro

ea.

67 Mustang Fastback All rear lights and gas gauge, without low fuel warning
includes tail lamp sockets
(p/n EWL-067-362)		 $ 159.95 American Repro

ea.

67 Shelby GT350/GT500 All rear lights and gas gauge, without low fuel warning
does not include tail lamp sockets
requires EWL-067-365 Shelby tail light extension harness
(p/n EWL-067-367)		 $ 139.95 American Repro

ea.

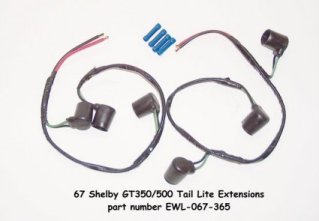

67 Shelby GT350/GT500 Tail Light Extension Harness
includes a left and right side harness
(p/n EWL-067-365)		 $ 89.95 American Repro

set

67 Shelby GT350/GT500 WHITE QUICK CONNECTOR
used by Shelby in various locations throughout the car
sold in 6 piece kits
(p/n BK-44)		 $ 5.00 American Repro 6 pce kit
67 Shelby GT350/GT500 Tail Light Socket
sold individually, total of 6 used
(p/n EWL-067-366)		 $ 18.50 American Repro

ea.

68 Mustang Coupe, and Convertible Tail-Light Harness, All rear lights with sockets installed
(p/n EWL-068)		 $ 159.50 American Repro

ea.

68 Mustang Fastback Tail-Light Harness, All rear lights with sockets installed
(p/n EWL-068-363)		 $ 159.50 American Repro

ea.

68 Shelby GT350/GT500 All rear lights and gas gauge, without low fuel warning
does not include tail lamp sockets
(p/n EWL-068)
requires EWL-068-365 Shelby tail light extension harness		 $ 139.95 American Repro

ea.

68 Shelby GT350/GT500 Tail Light Extension Harness
includes a left and right side harness with sockets
(p/n EWL-068- 365)		 $ 119.95 American Repro

set

68 Mustang Coupe, and Convertible Rear Coutesy Lights and Fuel Gauge harness $ 69.00 American Repro

ea.

68 Mustang Fastback Rear Coutesy Lights and Fuel Gauge harness $ 69.00 American Repro

ea.

69/70 Mustang Fastback Rear 1/4 panel Coutesy Lights extension harness's
includes 2 harness's one left & one right side		 $ 29.95 American Repro

ea.

69 Mustang Coupe, and Convertible All rear lights and gas gauge
includes tail lamp sockets
specify whether you have a short or long fuel sender wire		 $ 229.95 American Repro

ea.

69 Mustang Fastback All rear lights and gas gauge
includes tail lamp sockets
specify whether you have a short or long fuel sender wire
(p/n EWL-069-363)		 $ 229.95 American Repro

ea.

69/70 Shelby GT500 Fastback Tail-Light Harness All rear lights with 6 tail-light sockets and gas gauge sender extension
(p/n EWL-690-363)		 $ 400.00 American Repro

ea.

70 Mustang Coupe, and Convertible All rear lights and gas gauge
includes tail lamp sockets		 $ 229.95 American Repro

ea.

70 Mustang Fastback All rear lights and gas gauge
includes tail lamp sockets
(p/n EWL-070-363)		 $ 229.95 American Repro

ea.

IGNITION WIRING
basic 12250
69/70 All IGNITION RESISTER WIRE ASSY., factory fix to be spliced into underdash harness, pink resister wire w/protective jacket $ 28.75 N.O.S.

ea.

FOG LAMP HARNESS
65/67 Mustang Fog Lamp Pigtail , (p/n ELE-567-210) $ 13.95 American Repro

ea.

67 Mustang Firewall to Fog Lamp Feed, (basic 15223) $ 21.95 American Repro

ea.

68 Mustang Fog Lamp Pigtail, (basic 14211) $ 13.95 American Repro

ea.

68 Mustang Firewall to Fog Lamp Feed, (basic 15223) $ 100.00 American Repro

ea.

67/68 All Foglamp circuit breaker, (basic 14526) $ 11.95 American Repro

ea.

69/70 Shelby GT350/GT500 Foglamp Harness, underdash to foglamps
(p/n ELE-069-212)		 $ 120.00 American Repro

ea.

69/70 Shelby GT350/GT500 Foglamp PigTails,
1 required for each foglamp
(p/n ELE-690-213)		 $ 20.95 American Repro

ea.

DOOR PANEL HARNESS
67 Mustang ALL with factory door speakers, 2 required
(p/n EWL-067-503)		 $ 39.95 American Repro

ea.

68 Mustang ALL with factory door speakers, 2 required
(p/n EWL-068-503)		 $ 39.95 American Repro

ea.

69/70 Mustang ALL with factory door speakers & door panel lights, 2 required
(p/n EWL-690-503)		 $ 59.95 American Repro

ea.

HOOD TURN SIGNALS LAMPS HARNESS
67/68 Mustang models with hood turn signal lamps
(p/n ELE-068-207)		 $ 32.95 American Repro

ea.

69/70 Mustang models with hood turn signal lamps
69 Mustangs also require's "hood turn signal lamp extension harness", sold below
(p/n ELE-690-214)		 $ 38.95 American Repro

ea.

69 Mustang hood turn signal lamps extension harness
(p/n ELE-069-213)		 $ 38.95 American Repro

ea.

REV LIMITER Basic 12405
70 428CJ/SCJ models with factory rev limiter, 5800 R.P.M.
American Made reproduction,inoperative		 $ 395.00 American Repro

ea.

70 BOSS 302 models with factory rev limiter, 6150 R.P.M.
American Made reproduction, inoperative		 $ 395.00 American Repro

ea.

REV LIMITER REPAIR PIGTAIL
70 All models with factory rev limiter
(p/n ELE-690-227)		 $ 30.00 American Repro

ea.

BACK-UP LAMP HARNESS
basic 15525
70 Mustang models with 4-speed
(p/n ELE-070-474)		 $ 29.95 American Repro

ea.

RADIO POWER AND SPEAKER HARNESS
67-70 Mustang, Cougar AM radio,includes power and speaker harness
also includes a new contact connector for the radio light
(p/n ELE-678-410)		 $ 16.95 American Repro

ea.

67-70 Mustang, Cougar Stereo Speaker distribution harness
required for AM/FM Stereo and AM/8 Track Tape radios
feeds speaker to left & right kick panels to connect to door harness
(p/n EWL-690-504)		 $ 29.95 American Repro

ea.

HEATER MOTOR
67-68 Mustang, Cougar Heater Motor wires repair harness
includes moulded grommet to seal wires inside motor housing
motor must be disasembled to attach wires internally
(p/n ELE-678- 412)		 $ 14.95 American Repro

ea.

69-70 Mustang, Cougar Heater Motor wires repair harness
includes moulded grommet to seal wires inside motor housing
motor must be disasembled to attach wires internally
includes power extension lead
(p/n ELE-690-412)		 $16.95 American Repro

ea.

SWITCHES
basic 9278
69/70 428CJ/SCJ Oil Pressure Sender Switch, for instrument clusters with oil pressure gauge and without factory tach $ 48.00 N.O.S.

ea.

68 Shelby GT350,GT500,GT500KR Oil Pressure Sender Switch, correct Stewart Warner sender w/black rubber boot $ 175.00 N.O.S.

ea.

basic 10884
70 428CJ/SCJ SENDER, Water Temperature sender switch with gauge $ 43.75 N.O.S.

ea.

basic 15A214
67 Mustang Fog Lamp Switch, includes mounting bracket and knob $ 39.95 American Repro

ea.

68 Mustang Fog Lamp Switch, includes mounting bracket and knob $ 39.95 American Repro

ea.

basic 13A805
68/69 Mustang HORN RING, 2 spoke wheel $ 75.50 N.O.S.

ea.

basic 13A875
69 Mustang DELUXE 3 SPOKE RIM BLOW HORN SWITCH $ call for avail N.O.S.

ea.

70 Mustang DELUXE 3 SPOKE RIM BLOW HORN SWITCH $ call for avail N.O.S.

ea.

basic 13341
67 Mustang DIRECTIONAL LIGHT SWITCH, without tilt wheel call for avail N.O.S.

ea.

67 Mustang DIRECTIONAL LIGHT SWITCH, with tilt wheel call for avail N.O.S.

ea.

68/69 Mustang DIRECTIONAL LIGHT SWITCH, with tilt wheel call for avail N.O.S.

ea.

68 Mustang DIRECTIONAL LIGHT SWITCH, without tilt wheel call for avail N.O.S.

ea.

69 Mustang DIRECTIONAL LIGHT SWITCH, without tilt wheel call for avail N.O.S.

ea.

70 Mustang DIRECTIONAL LIGHT SWITCH, without tilt wheel call for avail N.O.S.

ea.

70 Mustang DIRECTIONAL LIGHT SWITCH, with tilt wheel call for avail N.O.S.

ea.

basic 13318
67/69 Mustang,Cougar Cam, Tilt Colunm Turn Signal canceling cam, attaches to steering wheel
replaces Ford P/N C7SZ-13318-B		 $ 8.95 American Repro

ea.

basic 7A247
67 Mustang NEUTRAL SAFETY SWITCH, Mustang with C6 transmission, before 12-15-66 mounts to transmission call for avail N.O.S.

ea.

67/69 Mustang NEUTRAL SAFETY SWITCH / BACKUP LIGHT SWITCH
Mustang and Cougar with C6 transmission, after 12-15-66 mounts to transmission
(p/n C9ZZ-7A247-B)		 $ 91.50 N.O.S.

ea.

67/70 Fairland/Torino NEUTRAL SAFETY SWITCH, Fairlane/Torino with C6 transmission and console, mounts to shifter/console $ 80.00 N.O.S.

ea.

basic 15520
67/68 Mustang BACKUP LIGHT SWITCH, with 4-speed transmission, includes bracket $ 125.00 N.O.S.

ea.

66/68 Fairlane Torino BACKUP LIGHT SWITCH, with 4-speed transmission, includes bracket
(p/n C6OZ-15520-B)		 $ 125.00 N.O.S.

ea.

69 Mustang BACKUP LIGHT SWITCH, with 4-speed transmission, includes wiring $ 219.95 American Repro

ea.

70 Mustang BACKUP LIGHT SWITCH, with 4-speed transmission, with factory HURST shifter $ 125.00 N.O.S

ea.

basic 14A163
69 Mustang/Cougar WIRE HARNESS BRACKET, all with 3 & 4-speed transmission, attaches to factory installed 4-speed FORD
shifter required to secure back-up lite wires
(p/n C9ZZ-14A163-AR)		 $ 29.95 American Repro ea.

70/73 Mustang/Cougar WIRE HARNESS BRACKET, all with 4-speed transmission, attaches to factory installed 4-speed HURST
shifter required to secure back-up lite wires
incl. attaching bolt (p/n DOZZ-14A163-AR)		 $ 19.95 American Repro ea.

basic 13A254
70 Mustang SPORT LAMP SWITCH, MACH 1, includes Knob, mounts to center of dash $ 75.00 Repro

ea.

basic 13A256
