SECTION V |
||||||
| Year | Application | Description | Price | Condition | Pkg. |
|
| EXHAUST MANIFOLDS & ATTACHING PARTS | ||||||
| basic 9A427 | ||||||
| 67 | 390GT | EXHAUST MANIFOLD HEAT
RISER VALVE, # C7ZE-9A427-A / p/n C6OZ-9a427-D |
175.00 | ORIG | ea. |
 |
| 67 | 390GT | GASKET, Exhaust manifold heat
riser to exhaust manifold Note: This gasket was not factory installed. This is available for those concerned about having a leak. p/n EX-6 |
$ 7.55 | Repro | ea. |
 |
| basic 9430 / 9431 | ||||||
| 67/68 | 390GT | EXHAUST MANIFOLDS, before 2-15-68, requires heat riser, blasted, 4 new studs & nuts, rebuilt choke stove w/new fitting, ready to install | $ 425.00 | ORIG | ea. |
 |
| 68 | 390GT | EXHAUST MANIFOLDS, after 2-15-68, w/o heat riser, blasted, 4 new studs & nuts, rebuilt choke stove w/new tube fitting, ready to install | $ 425.00 | ORIG | ea. |
|
| 69 | 390GT | EXHAUST MANIFOLDS, w/o heat riser, blasted, 4 new studs & nuts, rebuilt choke stove w/new tube fitting, ready to install | $ 425.00 | ORIG | ea. |
 |
| 68/69 | 428CJ/SCJ | EXHAUST MANIFOLDS,
rebuilt includes blasting, 4 new studs, 4 correct nuts, rebuilt
choke stove w/new bottom fitting, ready to install requires use of spacer on right side manifold |
$ 850.00 | ORIG | ea. |
 |
| 70 | 428CJ/SCJ | EXHAUST MANIFOLDS,
rebuilt includes blasting, 4 new studs, 4 correct nuts, ready to
install no spacer required, has no choke stove hardware 70 had manual choke right side manifold casting number C9OE-9430-D |
$ 950.00 | ORIG | ea. |
 |
| 68/70 | 428CJ/SCJ | GASKETS Exhaust Manifold to
Cylindar Head, fits 16 bolt hole C8OE-N heads ALL 428CJ/SCJ left the factory without gaskets between the exhaust manifold and the cylindar head. These gaskets are intended for those applications that require extra sealing. (p/n EXH-428CJ) |
$ 43.50 | American Repro | pair |
 |
| 66/69 | 390GT | GASKETS Exhaust Manifold to
Cylindar Head, fits 14 bolt hole heads ALL 390GT left the factory without gaskets between the exhaust manifold and the cylindar head. These gaskets are intended for those applications that require extra sealing. (p/n EXH-390GT) |
$ 53.50 | American Repro | pair |
 |
| 67/68 | GT500/428PI | GASKETS Exhaust Manifold to
Cylindar Head, fits 14 bolt hole heads ALL 428PI left the factory without gaskets between the exhaust manifold and the cylindar head. These gaskets are intended for those applications that require extra sealing. (p/n EXH-390GT) |
$ 53.50 | American Repro | pair |
|
| basic 9A435 | ||||||
| 68/69 | 428CJ/SCJ | EXHAUST MANIFOLD SPACER,
original, p/n C8OZ-9A435-A |
$ 60.00 | ORIG | ea. |
 |
| 67/68 | 390GT | EXHAUST MANIFOLD SPACER, solid, eliminates heat riser, p/n C6OZ-9A435-A | $ 60.00 | ORIG | ea. |
 |
| 66/68 | 390GT | GASKET, Exhaust manifold spacer
to exhaust manifold Note: This gasket was not factory installed. This is available for those concerned about having a leak. p/n EX-6 |
$ 7.55 | Repro | ea. |
|
| basic 9450 | ||||||
| 66/69 | 390GT, 428PI | ENGINE PIPE DONUTS, replaces original factory donuts between the exhaust manifold and the H-pipe | $ 7.50 | American Repro | ea. |
 |
| 68/70 | 428CJ/SCJ | ENGINE PIPE DONUTS,
metal, factory original dual sized design to properly seal H-pipe
to Exhaust Manifolds Manuf. by Mansfield Mustang / MCA Approved |
$ 17.50 | American Repro | ea. |
 |
| basic 9A603 | ||||||
| 70 | Boss 302 | EXHAUST MANIFOLD HEAT SHIELD, set of 2 pieces, ready to bolt on | $ 475.00 | American Repro | ea. |
 |
| 68 | 390GT | EXHAUST MANIFOLD HEAT SHIELD, excellent original, glass beaded & painted, ready to bolt on | $ 375.00 | ORIG | ea. |
 |
| 69 | 390GT | EXHAUST MANIFOLD HEAT SHIELD, excellent original, glass beaded & painted, ready to bolt on | $ 375.00 | ORIG | ea. |
|
| 68/70 | 428CJ/SCJ | EXHAUST MANIFOLD HEAT SHIELD, includes both 9C670 attaching brackets & attaching nuts | $ 455.00 | American Repro | ea. |
 |
| basic 9652 | ||||||

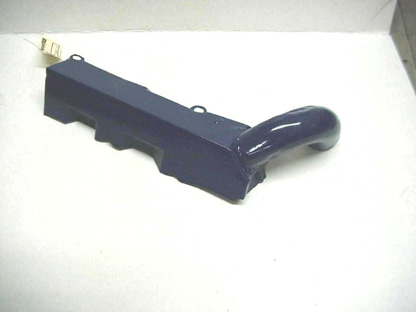

| 68/70 | 428CJ/SCJ | S-TUBE , connects
heat shield to air cleaner snorkel original p/n C8AZ-9652-A |
$ 275.00 | American Repro | ea. |
 |
| 68 | 390GT | S-TUBE , connects heat shield to air cleaner snorkel | $ 350.00 | ORIG | ea. |
 |
| basic 9C670 | ||||||
| 68/70 | 428CJ/SCJ | EXHAUST MANIFOLD HEAT SHIELD, FRONT BRACKET | $ 65.00 | American Repro | ea. |
 |
| 68/70 | 428CJ/SCJ | EXHAUST MANIFOLD HEAT SHIELD, REAR BRACKET | $ 65.00 | American Repro | ea. |
 |
| basic 9A714 | ||||||
| 67/70 | 390GT/428CJ/SCJ | CHOKE STOVE KIT, includes NEW lower fresh air tube fitting and inner hot air mesh filter element, CK-10 | $ 23.50 | American Repro | ea. |
 |
| basic 19C482 | ||||||
| 67/70 | 390GT/428CJ/SCJ | HEATER MOTOR SHIELD, required to protect heater motor when installing engine wo/AC | $125.00 | ORIG | ea. |
 |
| basic 17K004 | ||||||
| 67 | 390GT/428PI | ENGINE LIFT HOOKS,
Shelby GT500 with 428PI engine and 390GT Mustang/Cougar/Fairlane includes 2 correct attaching bolts p/n C6OZ-17K004-A/B, sold in sets of two |
$ 90.00 | American Repro | pair |
 |
| 68 | 428PI | ENGINE LIFT HOOKS,
Shelby GT500 with 428PI engine p/n C8ZZ-17K004-A/B, sold in sets of two |
$ 90.00 | ORIG | pair |
 |
| 68/69 | 390GT | ENGINE LIFT HOOKS,
p/n C8ZZ-17K004-A/B sold in sets of two |
$ 90.00 | ORIG | pair |
|
| 68/70 | 428CJ/SCJ | ENGINE LIFT HOOKS,
with correct stampings as original , sold in sets of two |
$ 175.00 | American Repro | pair |
 |
| basic 5A231 | ||||||
| 67/70 | 390GT/428CJ/SCJ | MUFFLER & TAILPIPE CLAMP
2", nice detail item, various applications, has stamped "FORD" logo |
$ 9.25 | N.O.S. | each |
 |
| 67/70 | 390GT/428CJ/SCJ | MUFFLER & TAILPIPE CLAMP
2 1/4", nice detail item, various applications, has stamped "FORD" logo |
$ 8.00 | N.O.S. | each |
|
| Misc. | ||||||
| 67 | 390GT | EXHAUST MANIFOLD BOLT
KIT, 16 correct ramp-lok bolts and washers, sold as complete
set, p/n RLK-12 |
$ 29.95 | American Repro | set |
 |
| 68/69 | 390GT | EXHAUST MANIFOLD BOLT
KIT, 16 correct ramp-lok bolts and washers, sold as complete
set, p/n RLK-17 |
$ 29.95 | American Repro | set |
 |
| 68/70 | 428CJ/SCJ | EXHAUST MANIFOLD BOLT
KIT,16 correct ramp-lok bolts and washers, sold as complete set, p/n RLK-13 |
$ 29.95 | American Repro | set |
 |
| 68/70 | 428CJ/SCJ |  EXHAUST MANIFOLD STUD KIT,
includes 4 studs & nuts, to connect H-pipe to exhaust manifold,p/n EX-3 |
$ 19.50 | American Repro | set |
 |
| 67/68 | 390GT | EXHAUST MANIFOLD STUD KIT,
includes 4 studs & nuts, to connect H-pipe to exhaust manifold, p/n EX-3 |
$ 19.50 | American Repro | set |
|
| 69 | 390GT | EXHAUST MANIFOLD STUD KIT,
includes 4 studs & nuts, to connect H-pipe to exhaust manifold. p/n EX-5 |
$ 19.50 | American Repro | set |
 |
