SECTION VII |
||||||
| Year | Application | Description | Price | Condition | Pkg. |
|
| COOLING SYSTEM and RELATED PARTS - TYPICAL | ||||||
| RADIATOR HOSES & RELATED PARTS | ||||||
| basic 8260 | ||||||

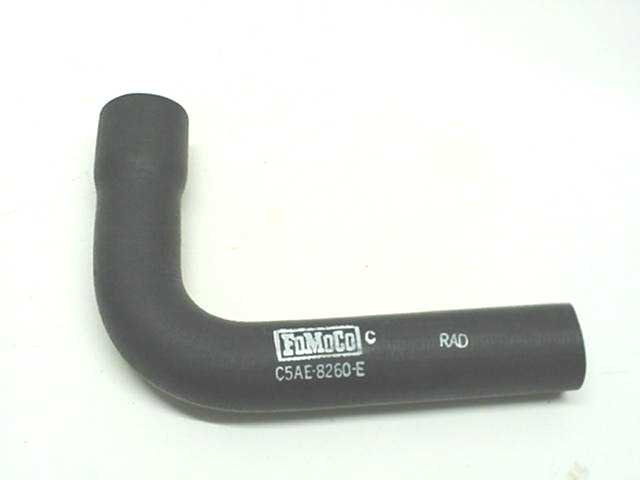

| 67 | 390GT/428 | Top hose with inked
markings "FOMOCO" and engineering # C5AE-8260-E uses band style clamp |
$ 18.50 | American Repro | ea. |
 |

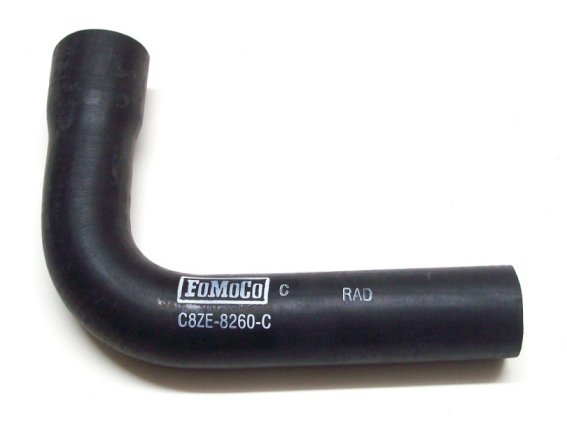

| 68 | 390GT/428 | Top hose with inked
markings "FOMOCO" and engineering # C8ZE-8620-C uses band style clamp |
$ 18.50 | American Repro | ea. |
 |

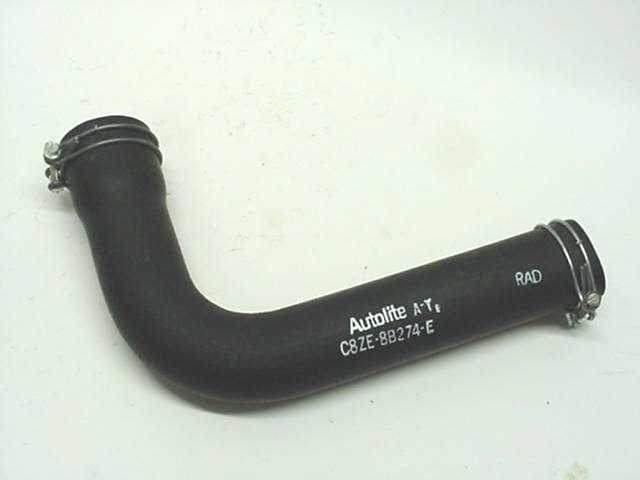

| 68/70 | 390GT/428CJ/SCJ | Top hose with inked
markings, "AUTOLITE" and engineering # C8ZE-8B274-E includes wire clamps stapled to hose as original |
$ 21.50 | American Repro | ea. |
 |
| basic 8286 | ||||||

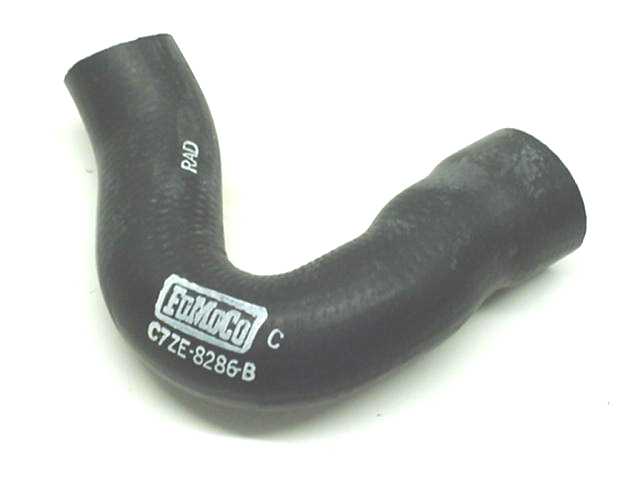

| 67 | 390GT | Bottom hose with inked
markings, "FOMOCO" and engineering # C7ZE-8286-B uses band style clamp |
$ 18.50 | American Repro | ea. |
 |

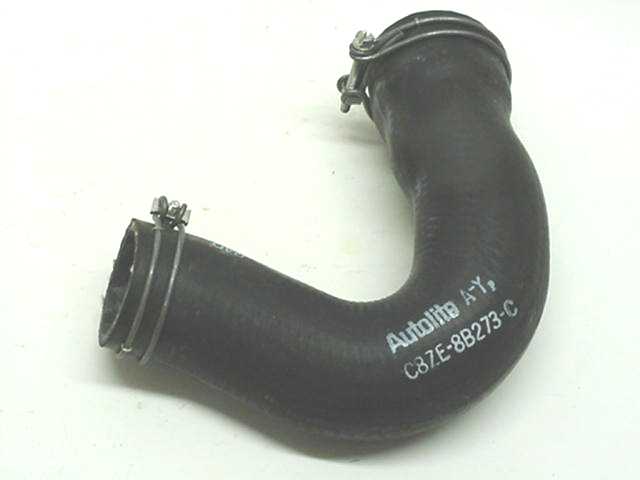

| 68 | 390GT/428CJ | Bottom hose with inked
markings, "AUTOLITE" and engineering # C8ZE-8B273-C includes wire clamps stapled to hose as original |
$ 21.50 | American Repro | ea. |
 |

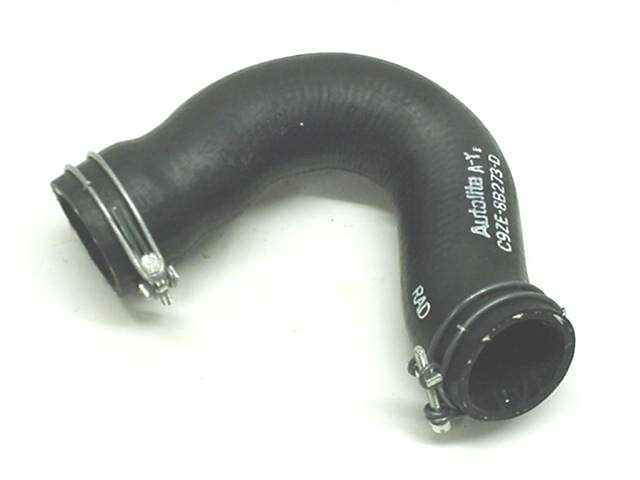

| 69/70 | 390GT/428CJ/SCJ | Bottom hose with inked
markings, "AUTOLITE" and engineering # C9ZE-8B273-D includes wire type clamps stapled to hose |
$ 21.50 | American Repro | ea. |
 |
| basic 8287 | ||||||
| 67/68 | 390GT/428 | HOSE CLAMP KIT, with
4 band style hose clamps & 6 band style heater hose clamps P/N HH-10 |
$ 23.50 | ORIG | ea. |
 |
| 68/70 | 390GT/428CJ/SCJ | HOSE CLAMP KIT, with
4 wire style hose clamps & 6 band style heater hose clamps P/N HH-14 |
$ 25.00 | ORIG | ea. |
 |
| 67/68 | 390GT/428 | BAND STYLE RADIATOR HOSE CLAMP, 4 piece set, original "Wittek" | $ 14.50 | ORIG | ea. |
 |
| 67/70 | 390GT/428CJ/SCJ | BAND STYLE HEATER HOSE CLAMP, individual, original "Wittek" | $ 2.50 | ORIG | ea. |
 |
| basic 8115 | ||||||
| 67/70 | 390GT/428CJ/SCJ | RADIATOR DRAIN PET COCK, as original with drip spout attached | $ 4.50 | American Repro | ea. |
 |
| basic 8100 | ||||||

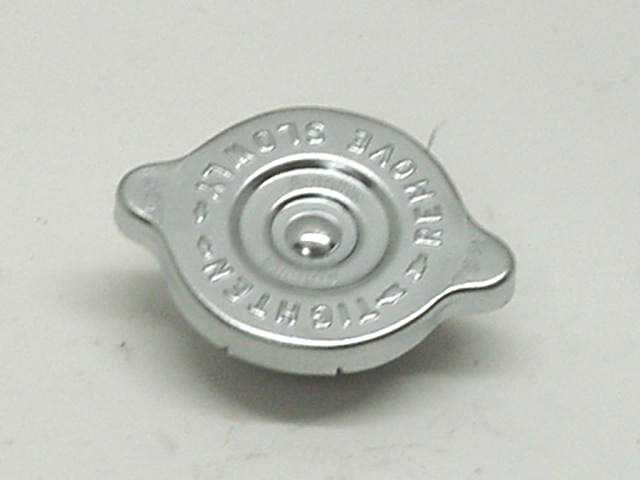

| 67/70 | All | RADIATOR CAP, "AUTOLITE"
Zinc plated finish, #13 lb. |
$ 24.95 | American Repro | ea. |
 |
| 67/70 | All | RADIATOR CAP, "AUTOLITE"
Chrome plated finish, #13 lb. |
$ 24.95 | American ReproAmerican Repro | ea. |
 |
| basic 8052 | ||||||

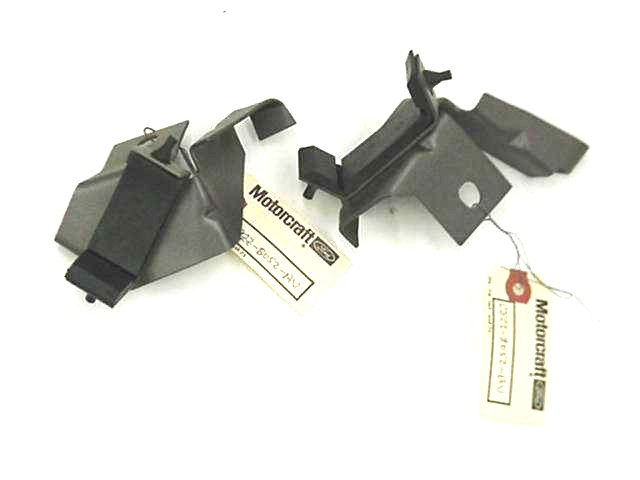

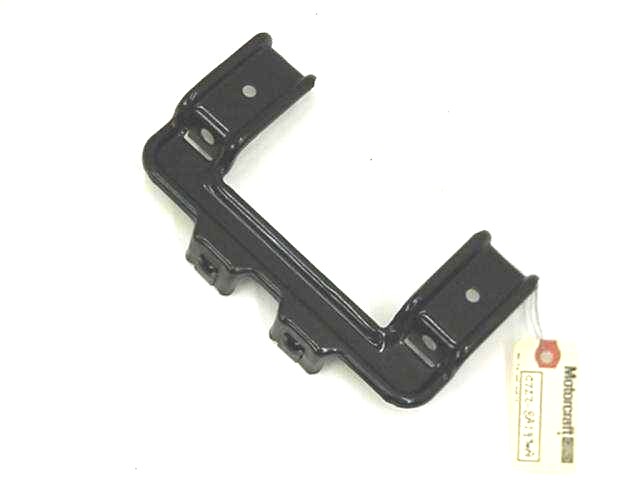

| 67 | 390GT/428 | BIG BLOCK RADIATOR MOUNTING BRACKET, lower, 24" radiator, 2 required | $ 85.00 | ORIG | pair |
 |
| 68/70 | 390GT/428CJ/SCJ | BIG BLOCK RADIATOR MOUNTING BRACKET, lower, 2 required | $ 85.00 | ORIG | pair |
 |
| basic 8A193 | ||||||
| 67/68 | 390GT/428CJ | BIG BLOCK RADIATOR MOUNTING BRACKET, upper, 1 required | $ 65.00 | ORIG | ea. |
 |
| 69/70 | 390GT/428CJ/SCJ | BIG BLOCK RADIATOR MOUNTING BRACKET, upper, 1 required | $ 65.00 | ORIG | ea. |
 |
| basic 8124/25 | ||||||
| 67 | 390GT/428 | BIG BLOCK INSULATOR
RUBBERS, lower radiator support bracket, includes 2 insulators p/n C3AZ-8125-A |
$ 10.95 | American Repro | pair |
 |
| 68/70 | 390GT/428 | BIG BLOCK INSULATOR
RUBBERS, lower radiator support bracket, includes 2 insulators p/n C8ZZ-8125-A |
$ 10.95 | American Repro | pair |
|
| 67/70 | 390GT/428CJ/SCJ | BIG BLOCK INSULATOR
RUBBERS, upper radiator support bracket, includes 2 insulators p/n C7OZ-8124-AR |
$ 10.95 | American Repro | pair |
 |
| basic 8A213 | ||||||
| 67/70 | All | HOSE, RADIATOR OVERFLOW, correct thin wall 5/16" hose, sold by the foot | $ 1.25 | American Repro | per foot |
 |
| POWER BRAKE BOOSTER CHECK VALVE, HOSE, VACUUM TUBE, CLAMPS | ||||||
| basic 2365 | ||||||
| 69/70 | Mustang, Torino | CHECK VALVE, POWER BRAKE BOOSTER, with disk brakes, used with all Bendix Brake Boosters | $8.00 | N.O.S. | each |
 |
SRC="camera.gif" WIDTH="32" HEIGHT="27" ALIGN="MIDDLE" BORDER="0"
| basic 4090 | ||||||
| 67/70 | All | HOSE, POWER BRAKE
BOOSTER, correct 11/32" re-enforced vacuum hose, connect engine to brake booster, sold by the foot |
$ 3.75 | N.O.S. | per foot |
 |
| misc. | ||||||
| 67 | Shelby GT500 | TUBE, Pre-bent, connects Intake Manifold to vacuum hose, correct orig Zinc plated, p/n BT-3 | $ 14.50 | American Repro | each |
 |
| 68 | Shelby GT500, GT500KR | TUBE, Pre-bent, connects Intake Manifold to vacuum hose, correct orig Zinc plated, p/n BT-2 | $ 18.50 | American Repro | each |
 |
| 67/68 | Mustang 428CJ, 390GT | TUBE, Pre-bent, connects Intake Manifold to vacuum hose, correct orig Zinc plated, p/n BT-2 | $ 18.50 | American Repro | each |
|
| 69 | Mustang 428CJ/SCJ, 390GT | TUBE, Pre-bent, connects Intake Manifold to vacuum hose, correct orig Zinc plated, p/n BT-2 | $ 18.50 | American Repro | each |
|
| 68/69 | Torino 428CJ, 390GT | TUBE, Pre-bent, connects Intake Manifold to vacuum hose, correct orig Zinc plated, p/n BT-1 | $ 18.50 | American Repro | each |
 |
| 67 | Shelby GT500 | PCV UNIQUE REAR BRASS
INTAKE FITTING, threads into rear of C7ZX 2-4bbl aluminum intake p/n C7ZX-9A474-B |
$ 38.50 | ORIG | ea. |
 |
| 67/69 | All | CLAMP,BRAKE BOOSTER HOSE,
correct 11/32" size, sqweeze once clamp, correct finish, p/n 12688-B |
$ 1.00 | N.O.S. | each |
 |
| 69/70 | All | CLAMP,BRAKE BOOSTER HOSE,
correct 11/32" size, sqweeze type clamp, correct red color, p/n 12688-A |
$ 1.00 | N.O.S. | each |
 |
| ENGINE DRIVE BELTS | ||||||
| basic 8620 | ||||||
| 68/70 | 390GT/428CJ/SCJ | ALTERNATOR BELT, with inked markings, available with manufacturing dates by quarter to match your vehicles build date | $ 25.00 | American Repro | ea. |
 |
| 68/70 | 390GT/428CJ/SCJ | POWER STEERING BELT, with inked markings, available with manufacturing dates by quarter to match your vehicles build date | $ 25.00 | American Repro | ea. |
 |
| 68/70 | 390GT/428CJ/SCJ | EMISSION AIR PUMP BELT, with inked markings, available with manufacturing dates by quarter to match your vehicles build date | $ 25.00 | American Repro | ea. |
 |
| 68/70 | 390GT/428CJ/SCJ | AIR CONDITIONING BELT, correct for factory original configuration with smog system,includes inked markings, available with manufacturing dates by quarter to match your vehicles build date | $ 28.50 | American Repro | ea. |
 |
| 68/70 | 390GT/428CJ/SCJ | AIR CONDITIONING BELT, used on engines that do not have smog system installed and alternator is mounted high, includes inked markings, available with manufacturing dates by quarter to match your vehicles build date | $ 28.50 | American Repro | ea. |
|
| WATER PUMP & RELATED PARTS | ||||||
| basic 8501 | ||||||
| 68 | 390GT/428 | WATER PUMP, ( # C8AE-A),
rebuilt NO core charge required |
95.00 | ORIG | ea. |
 |
| 69/70 | 390GT/428CJ/SCJ | WATER PUMP, ( # C9AE-A)
rebuilt with select 68, 69 & 70 date codes, ADD $30.00 NO core charge required |
95.00 | ORIG | ea. |
 |
| 67/70 | 390/428 | Bolt Kit, water pump
to engine block, 4 bolts & 4 washers (p/n BK-25) |
$ 6.25 | N.O.S | ea. |
 |
| basic 18599 | ||||||
HEATER HOSE ELBOW COMPARISON CHART
> |
||||||
| 67 | GT500/428PI |  HEATER HOSE Fittings, Shelby
GT500 with 428PIAttaches to water pump. This 2 piece set includes: a correct 45 degree fitting and heater hose nipple. (p/n C7ZX-18599-A) |
$ 43.95 | American Repro | set |
 |
| 68 | 390GT/428PI/428CJ | HEATER HOSE ELBOW, Mustang, Shelby
GT500KR with 428CJ, 68 Shelby GT500 with 428PI aluminum intake, 68
Mustang, Cougar, Torino with 390GT, 90 degree elbow attaches to intake
manifold, provides proper clearance for emission canister and air
cleaner housing (p/n C8AZ-18599-A) |
$ 37.95 | American Repro | ea. |
 |
| 69/70 | 428CJ/SCJ/Boss 302 | HEATER HOSE ELBOW, 90 degree
elbow attaches to intake manifold, provides proper clearance for emission
canister and air cleaner housing (p/n C9ZZ-18599-A) |
$ 37.95 | American Repro | ea. |
 |
| 69/70 | 351 | HEATER HOSE ELBOW, Mustang, Couger,
Torino with 351 2bbl engine, 90 degree elbow attaches to intake
manifold (p/n DOAZ-18599-A) |
$ 37.95 | American Repro | ea. |
 |
| 68/70 | 390GT/428CJ/SCJ | HEATER HOSE NIPPLE, 3"
long nipple attaches to water pump, correct plating, as shown
in 3/94 Mustang Monthly CJ article |
$ 27.95 | American Repro | ea. |
 |
| basic 8555 | ||||||
| 66/70 | 390GT/428CJ | Tube, intake manifold bypass, cut to length used in all iron and alum. manifolds | $ 9.75 | American Repro | ea. |
 |
| basic 18B402 | ||||||
| 70 | 428CJ/SCJ | DUAL HEATER HOSE TUBES, attaches along top side of passenger side valve cover | $ 55.00 | American Repro | ea. |
 |
| basic 18472 | ||||||
| 67/68 | All | HEATER HOSE, without Air Conditioning, correct grooved & white stripe inked, 8' length, all 67 to early 1968 | $ 35.00 | American Repro | ea. |
 |
| 67/68 | All | HEATER HOSE, with Air Conditioning, correct grooved & white stripe inked, 8' length, all 67 to early 1968 | $ 45.00 | American Repro | ea. |
|
| 68 | All | HEATER HOSE, correct
grooved with red (rust color) stripe, marked "Autolite"
& date stamped "H8A23B" (1-23-68), 8', without A-C |
$ 40.00 | American Repro | ea. |
 |
| 69 | All | HEATER HOSE, correct
grooved with red (rust color) stripe, marked "Autolite"
& date stamped "H8H02A" (8-02-68), 8', without AC |
$ 40.00 | American Repro | ea. |
|
|
|
|
(8-02-68), 8', with A-C |
|
|
|
 |
| 70 | All | HEATER HOSE, correct
grooved with red (rust color) stripe, marked "Autolite"
& date stamped "H9H04B" (8-04-69), 8', without A-C |
$ 40.00 | American Repro | ea. |
|
| 70 | All | HEATER HOSE, correct
grooved with red (rust color) stripe, marked "Autolite"
& date stamped "H9H04B" (8-04-69), 8', with A-C |
$ 48.00 | American Repro | ea. |
|
| 70 | All | HEATER HOSE, correct
grooved with yellow stripe, marked "Autolite" &
date stamped "HOA13A" (1-13-70), 8' without A-C |
$ 40.00 | American Repro | ea. |
|
| 67/68 | All | MOLDED HEATER HOSE, used with AC, correct molded hose to connect the water valve to the heater core. | $ 21.50 | American Repro | ea. |
 |
| 69/70 | All | MOLDED HEATER HOSE, used with AC, correct molded hose to connect the water valve to the heater core. | $ 21.50 | American Repro | ea. |
 |
| basic 18652 | ||||||
| 70 | All | GROMMET, Heater Hose, at
firewall 2 required, sold individually p/n D0ZZ-18652-AR |
$ 9.75 | American Repro | ea. |
 |
| VACUUM
HOSE & RELATED PARTS misc. |
||||||
| 67 | 390GT/428 | VACUUM ADVANCE HOSE, with inked green stripe and MX , sold by the foot | $ 3.75 | American Repro | per foot |
 |
| 68/70 | 390GT/428CJ/SCJ | ENGINE VACUUM HOSE KIT, with 4-spd trans., inked with MX, includes red, green, blue & yellow striped hoses, vacuum "T" inst. | $ 22.50 | American Repro | ea. |
 |
| 68/70 | 390GT/428CJ/SCJ | ENGINE VACUUM HOSE KIT, with C6 trans., inked with MX, includes red, green, blue & yellow striped hoses, vacuum "T" inst. | $ 22.50 | American Repro | ea. |
 |
| 68/70 | All | VACUUM HOSE BRASS
TIE, used to dress up the distributor vacuum hose's Factory used both Brass and Aluminum, pick your favorite (p/n 383313-SB) |
$ 4.50 | American Repro | ea. |
 |
| 68/70 | All | VACUUM HOSE ALUMINUM
TIE, used to dress up the distributor vacuum hose's Factory used both Brass and Aluminum, pick your favorite (p/n 383313-SA) |
$ 4.50 | American Repro | ea. |
|
| basic 12A091 | ||||||
| 68/69 | 428CJ/SCJ & 390GT | VACUUM PORTS, "AUTOLITE", attaches to thermo. housing, 3 port valve, date coded, "C8AE" casting | $ 85.50 | ORIG | ea. |
 |
| 70 | 428CJ/SCJ | VACUUM PORTS, "AUTOLITE", attaches to thermo. housing, 3 port valve, date coded, "DOAE" casting | $ 65.50 | ORIG | ea. |
|
| basic 9C490 | ||||||
| 70 | All | VACUUM TREE, mounted on
firewall, 6 ports (p/n DOOZ-9C490-A) |
$ 35.50 | ORIG | ea. |
 |
| basic 19A563 | ||||||
| 67/70 | Mustang,Cougar,Torino | VACUUM CHECK VALVE, used with
factory air conditioning and tilt column (p/n C6OZ-19A563-A) |
call for avail | ORIG | ea. |
 |
| COOLING FANS & SHROUDS | ||||||
| basic 8146 | ||||||
| 67 | 390GT/428 | RADIATOR FAN SHROUD | $ 122.50 | American Repro | ea. |
 |
| 68/70 | 390GT/428CJ/SCJ | RADIATOR FAN SHROUD | 89.95 | American Repro | ea. |
 |
| basic 8600 / 8A616 | ||||||
| 67 | 390 | CLUTCH & FAN ASSEMBLY, # C6OE-F, 6 blade | call for avail | ORIG | ea. |
|

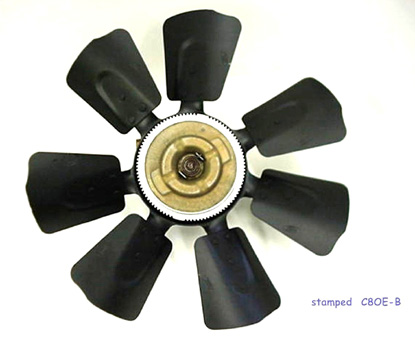

| 68 | 390GT/428 | CLUTCH & FAN ASSEMBLY, # C8OE-B, 7 blade | call for avail | ORIG | ea. |
 |
| 69 | 390GT/428CJ/SCJ | CLUTCH & FAN ASSEMBLY,
# C9ZE-E, 7 blade, C9ZE-B Clutch,used with and without Air Conditioning |
call for avail | ORIG | ea. |
 |
| 70 | 428CJ/SCJ | CLUTCH & FAN ASSEMBLY,
# C9ZE-E, 7 blade, DOZF-A Clutch, used with Air Conditioning |
call for avail | ORIG | ea. |
|
| 70 | 428CJ/SCJ | FAN ASSEMBLY, # C9OE-H, 6 blade flex fan, before 9/1/69, without Air Conditioning | call for avail | ORIG | ea. |
|
| 70 | 428CJ/SCJ | FAN ASSEMBLY, # DOTA-C , 7 blade flex fan, after 9/1/69, without Air Conditioning | call for avail | ORIG | ea. |
 |
| basic 8546 | ||||||
| 69/70 | 428CJ/SCJ | SPACER, FAN, non-clutch,
1 1/4" High required with C9OE-H or DOTA-C flex fans without Power Steering |
$ 24.95 | ORIG | ea. |
 |
| 69/70 | 428CJ/SCJ | SPACER, FAN, non-clutch,
1.88" High required with C9OE-H or DOTA-C flex fans with Power Steering |
$ 39.95 | ORIG | ea. |
 |
| HEATER & RELATED PARTS | ||||||
| basic 18476 | ||||||
| 67/68 | Mustang | HEATER CORE, without A/C, Quality American Made, good thick material, fits correctly | $ 74.75 | REPRO | ea. |
 |
| 69/70 | Mustang | HEATER CORE, without
A/C, Quality American Made, good thick material, fits correctly |
$ 74.75 | REPRO | ea. |
 |
| 69/70 | Mustang | HEATER CORE, with
A/C, Quality American Made, good thick material, fits correctly |
$ 74.75 | REPRO | ea. |
 |
| basic 18495 | ||||||
| 67/68 | Mustang | HOT WATER VALVE, Heater with Integral Air Conditioning | $ 53.25 | N.O.S. | ea. |
 |
| 69/70 | Mustang | HOT WATER VALVE, Heater with Integral Air Conditioning | call for avail | N.O.S. | ea. |
|
| basic 18518 | ||||||
| 67/68 | Mustang | CABLE ASSEMBLY, heater temp, defroster and air control | $ 59.50 | N.O.S. | ea. |
|
| 69/70 | Mustang | CABLE ASSEMBLY, heater temp, defroster and air control | $ 59.50 | N.O.S. | ea. |
 |
| basic 18556 | ||||||
| 67/68 | Mustang | Defroster hose kit, WITHOUT A/C, 2 hoses | $ 14.95 | American Repro | ea. |
 |
| basic 18658 | ||||||
| 67/68 | Mustang | SEAL KIT, HEATER BOX,
without A-C, contains all heater case seals and gaskets plus
fresh air seal (p/n C7ZZ-18658-A) |
$ 14.50 | American Repro | ea. |
|
| 67/68 | Mustang | SEAL KIT, HEATER BOX,
with factory A-C, contains all heater case seals and gaskets
plus fresh air seal (p/n C7ZZ-18658-B) |
$ 14.50 | American Repro | ea. |
|
| 69/70 | Mustang | SEAL KIT, HEATER BOX,
without factory A-C, contains all heater case seals and gaskets
plus fresh air seal (p/n C9ZZ-18658-A) |
$ 14.50 | American Repro | ea. |
|
| 69/70 | Mustang | SEAL KIT, HEATER BOX,
with factory A-C, contains all heater case seals and gaskets
plus fresh air seal (p/n C9ZZ-18658-B) |
$ 14.50 | American Repro | ea. |
|
