Engine, PCV & Emission Systems



used with C6AE & C7AE Aluminum Intake Manifold

 Mansfield Restoration Parts LLC ~ (508) 339-5409

 SECTION IV

 Year Application Description Price Condition Pkg.

 Item Picture
PCV COMPONENTS
TYPICAL 68 390GT & 68/69 428CJ/SCJ PCV SYSTEM OVERVIEW >
TYPICAL 1970 428CJ/SCJ PCV SYSTEM OVERVIEW >
TYPICAL 67 Shelby GT500 PCV SYSTEM OVERVIEW >
TYPICAL 68 Shelby GT500 PCV SYSTEM OVERVIEW >
TYPICAL 67 390GT PCV SYSTEM OVERVIEW >
TYPICAL 69 390GT PCV SYSTEM OVERVIEW >
basic 6A664
67 Shelby GT500 428PI 428PI with 2 4bbl carbs & C7ZX Intake Manifold
PCV HOSE KIT, includes 1- C7ZX-6A664-A hose
(p/n C7ZX-6A664-AR)
$ 23.50 American Repro ea.

67/68 390GT PCV HOSE KIT, includes 1- C6AZ-6A664-A hose and 1- C7ZZ-64664-B hose (p/n PCV-1) $ 24.50 American Repro ea.

69 390GT PCV HOSE, hose connects carburator base plate to PCV valve, (PCV-3) call for avail NOS ea.

68/69 428CJ/SCJ PCV HOSE KIT, includes 1- C6AZ-6A664-A hose and 1- C7ZZ-64664-B hose (p/n PCV-1) $ 24.50 American Repro ea.

68/70 428 PI & Shelby GT500 PCV HOSE KIT, includes 1- C6AZ-6A664-A hose and 1- C7ZZ-64664-B hose (p/n PCV-1) $ 24.50 American Repro ea.

70 428CJ/SCJ PCV HOSE, hose connects carburator base plate to PCV valve, (p/n DOZZ-6A664-A) $ 23.95 American Repro ea.

basic 18572
67 Shelby GT500 428PI PCV HOSE CLAMP KIT, includes: 2-C6AZ-18572-A
(p/n PCV-5)
$ 1.50 American Repro ea.

68/69  428PI/CJ/SCJ/Shelby GT500 PCV HOSE CLAMP KIT, includes: 3-C6AZ-18572-A
& 1-C6AZ-18572-B, (p/n PCV-2)
$ 2.50 American Repro ea.

67/68 390GT PCV HOSE CLAMP KIT, includes: 3-C6AZ-18572-A
& 1-C6AZ-18572-B, (p/n PCV-2)
$ 2.50 American Repro ea.

69 390GT PCV HOSE CLAMP KIT, includes: 1-C6AZ-18572-A
& 1-C6AZ-18572-B, (p/n PCV-4)
$ 1.50 American Repro ea.

1970 428CJ/SCJ PCV HOSE CLAMP KIT, includes: 1-C6AZ-18572-A
and 1-C6AZ-18572-B(p/n PCV-4)
$ 1.50 American Repro ea.

basic 6A892
67/70 390GT/428CJ/SCJ RUBBER GROMMET, valve cover to PCV valve
(p/n C7AZ-6A892-A)
$ 21.50 N.O.S. ea.

basic 6A666
67/69 390GT PCV VALVE, "Autolite" box'd, (before 2-21-69)
(p/n C7OZ-6A666-A)
$ 75.00 N.O.S. ea.

67/69 390GT PCV Valve replaces C7OZ-6A666- A
(p/n PCV-42)
$ 45.00 Amerian Repro ea.

67 Shelby GT500 428PI PCV VALVE, "Autolite" box'd,
(p/n C7OZ-6A666-A)
$ 75.00 N.O.S. ea.

69 390GT PCV VALVE, "Autolite" box'd, (after 2-21-69)
(p/n D0AZ-6A666-A)
$ 65.00 N.O.S. ea.

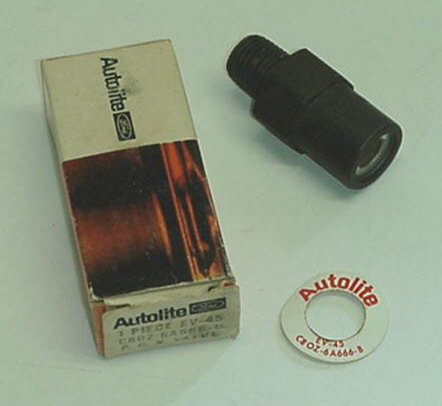

68/69 428CJ/SCJ PCV Valve replaces C8OZ-6A666-B
(p/n PCV-45)
$ 45.00 Amerian Repro ea.

68 390GT PCV Valve replaces C8OZ-6A666-B
(p/n PCV-45)
$ 45.00 Amerian Repro ea.

70 428CJ/SCJ PCV VALVE "Autolite" box'd
(p/n DOOZ-6A666-A)
$ 75.00 N.O.S. ea.

basic 6A706
67/70 390GT/428CJ/SCJ/PI PCV VALVE ADAPTER, threaded on bottom for PCV valve and 6 degree nipple on side (p/n C7OZ-6A706-A) $ 28.50 American Repro ea.

basic 6758
67/68 390GT PCV TUBE, fits stock GT cast iron manifolds $ 75.00 American Repro ea.

68/69 428CJ/SCJ PCV TUBE, use with # C8OE-C stock iron intake manifold, (p/n C8OZ-6758-B) $ 75.00 American Repro ea.

66/70 428PI PCV TUBE, fits both # C6AE or # C7AE Aluminum PI
intake manifold, (p/n C6AZ-6758-B)
$ 75.00 American Repro ea.

68 428 Shelby GT500 PCV TUBE, fits both # C6AE or # C7AE Aluminum PI
intake manifold, (p/n C6AZ-6758-B)
$ 75.00 American Repro ea.

basic 9447
67/68 390GT GASKET, CARBURETOR TO SPACER $ 5.45 American Repro ea.

69 390GT GASKET, CARBURETOR TO SPACER $ 5.45 American Repro ea.

68/69 428CJ/SCJ GASKET, CARBURETOR TO SPACER $ 5.45 American Repro ea.

70 428CJ/SCJ GASKET, CARBURETOR TO SPACER $ 5.45 American Repro ea.

67/68 390GT GASKET, SPACER TO INTAKE $ 5.45 American Repro ea.

69 390GT GASKET, SPACER TO INTAKE $ 5.45 American Repro ea.

68/70 428CJ/SCJ GASKET, SPACER TO INTAKE $ 5.45 American Repro ea.

68 428PI GASKET, SPACER TO INTAKE $ 5.45 American Repro ea.

basic 9A474

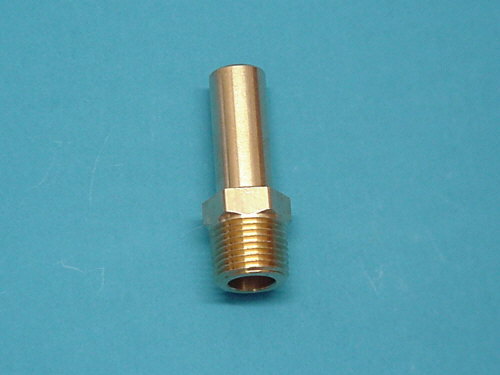

65/67 Shelby GT350 289 PCV UNIQUE BRASS INTAKE FITTING, screws into "Cobra" 4bbl aluminum intake manifold, has 1/2" nipple for PCV hose
p/n FIT-105
$ 21.50 American Repro ea.

67 Shelby GT500 428PI PCV UNIQUE BRASS INTAKE FITTING, screws into C7ZX intake manifold, has 1/2" nipple for PCV hose
p/n FIT-105
$ 21.50 American Repro ea.

66/68
68 1/2

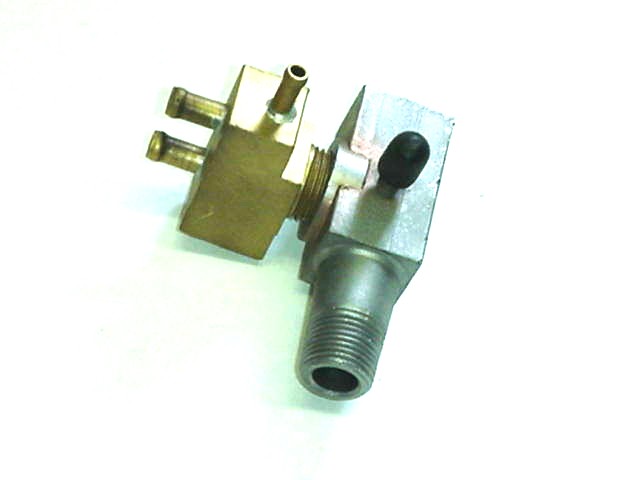

390GT,428PI,428CJ PCV UNIQUE LARGE REAR BRASS INTAKE FITTING, screws into intake manifold, has 1/2" nipple for PCV hose and threaded hole for smaller accessory fitting
p/n FIT-102
$ 48.95 American Repro ea.

69 428CJ/SCJ PCV UNIQUE LARGE REAR BRASS INTAKE FITTING, screws into intake manifold, has 1/2" nipple for PCV hose, 3/16" vacuum port nipple and threaded hole for smaller accessory fitting
p/n FIT-103
$ 48.95 American Repro ea.

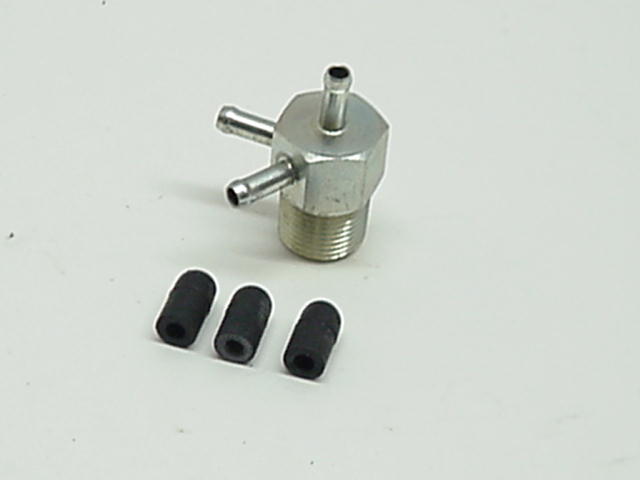

67/69 428CJ/SCJ/PI, 390GT PCV UNIQUE SMALL REAR BRASS INTAKE FITTING, screws into (FIT-102 & Fit-103) fitting, has threaded hole for P/B hose tube, small vacuum accessory nipples
p/n C8OZ- 9A474-B
$ 38.50 ORIG ea.

69 390GT PCV UNIQUE REAR Steel INTAKE FITTING,
p/n C9ZZ-9A474-A
$ 45.00 ORIG ea.

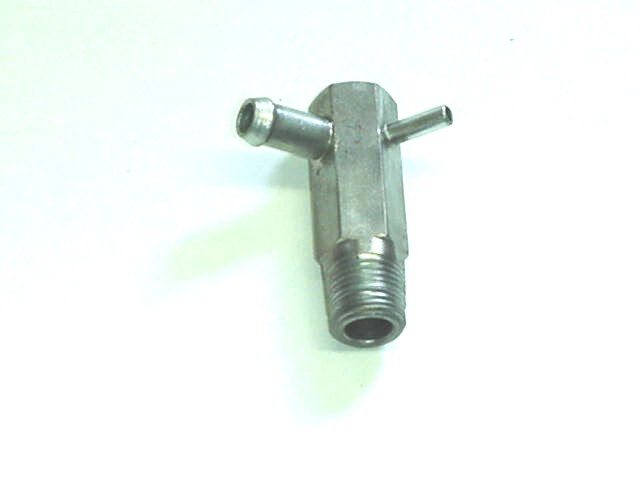

70 428CJ/SCJ, Boss 302 PCV UNIQUE REAR STEEL INTAKE FITTING,
original p/n DOZZ-9A474-A
$ 41.00 American Repro ea.

67/69 390GT/428CJ/SCJ/PI PCV UNIQUE FRONT STEEL INTAKE FITTING
replaces original C7AZ-9A474-A
p/n FIT-101
$ 48.95 American Repro ea.

70 428CJ/SCJ UNIQUE FRONT STEEL INTAKE FITTING
replaces original C8VY-9A474-B
p/n Fit-107
$ 48.50 American Repro ea.

basic 9A589
67 390GT CARBURETOR SPACER PLATE, 0.28" thick, with small vacuum hose nipple on rear
p/n C6AZ-9A589-B
call for avail American Repro ea.

68 390GT CARBURETOR SPACER PLATE, 0.28" thick, has correct tab marked "FRONT" p/n C8AZ-9A589-G $ 89.95 American Repro ea.

69 390GT CARBURETOR SPACER PLATE, 15/16" thick alum, with 5/8" heater nipples & 5/8" PCV hose nipple on rear
p/n C9ZZ-9A589-A
$ 70.00 ORIG ea.

68/69 428CJ/SCJ CARBURETOR SPACER PLATE, 0.28" thick, has correct tab marked "FRONT" p/n C8AZ-9A589-G $ 89.95 American Repro ea.

70 428CJ/SCJ CARBURETOR SPACER PLATE, 0.28" thick, has correct straight 1/2" PCV hose nipple in rear
(p/n DOOZ-9A589-A)
$ 119.95 American Repro ea.

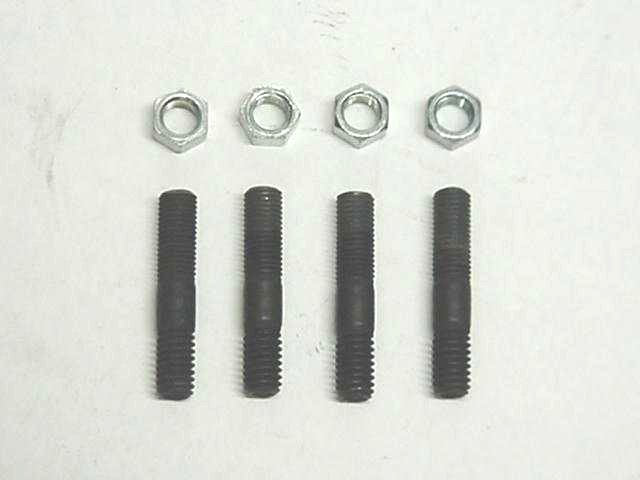

68/70 390GT/428CJ/SCJ CARBURETOR STUD KIT, used with 4 speed and some with C6
includes: 4 5/16"-18-24 x 1 3/8" and 4 351069-S8 nuts
(p/n CS-1)
$ 15.00 American Repro ea.

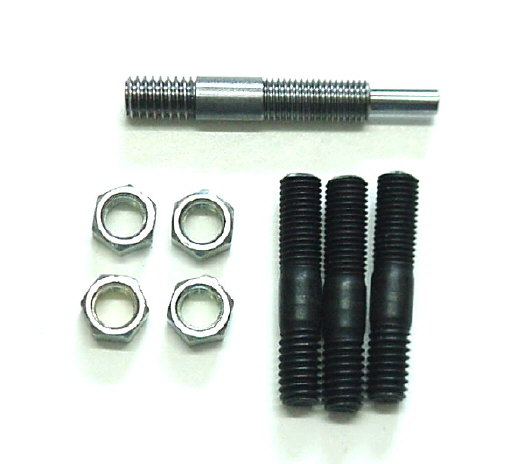

68/69 390GT/428CJ/SCJ CARBURETOR STUD KIT with C6 transmission
includes: 1 5/16"-18-24 x 2 1/4" hollow stud, 3 5/16"-18-24 x
1 3/8" and 4 351069-S8 nuts
(p/n CS-2)
$ 24.50 American Repro ea.

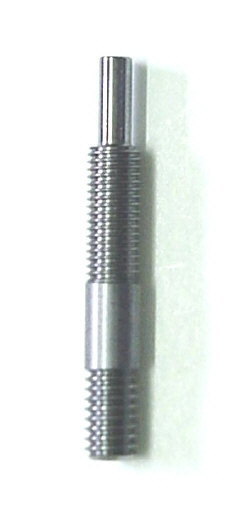

68/69 390GT/428CJ/SCJ CARBURETOR STUD, HOLLOW
Vacuum port for C6 trans. modulator hose, 5/16"-18-24 x 2 1/4"
(p/n 382768-S8)
$ 12.50 American Repro ea.

EMISSION SYSTEM & RELATED PARTS
COMPLETE EMISSION SYSTEM OVERVIEW >
Individual Emission Components
basic 9B289
68/70 428CJ/SCJ & 390GT Anti-backfire canister, many date codes available $ 375.00 NEW
Carter
ea.

basic 9B290
68/70 428CJ/SCJ & 390GT Anti-backfire canister bracket, has all correct markings
(# C8AE-9B290-A)
$ 145.00 American Repro ea.

basic 9B445
66/68 390GT/428PI Thermactor tubes, (steel, not brass or copper) sold only in sets of 2 that include: 1 right side and one left side tube assy. $ 175.00 American Repro pair.

68/70 390GT 428CJ/SCJ Thermactor tubes, (steel, not brass or copper) sold only in sets of 2 that include: 1 right side and one left side tube assy. $ 175.00 American Repro pair.

68/70 390GT 428CJ/SCJ Thermactor tubes, (steel, not brass or copper) sold only in sets of 2 that include: 1 right side and one left side tube assy., The main difference between these tubes and the ones above is the individual cylinder tubes are attached into a dimple in main runner tube as originals $ 275.00 American Repro pair.

basic 9B447
67 390GT SMOG PUMP PULLEY, without A-C
(# C6AE-9C447-E) P/N C6AZ-9B447-E
call for avail ORIG ea.

68/69 390GT SMOG PUMP PULLEY, without A-C,
(# C8AE-9C480-A) p/n C8AZ-9B447-B
$ 175.00 ORIG ea.

68 390GT/428CJ SMOG PUMP PULLEY, with A-C,
(# C8OE-9C480-B) P/N C8OZ-9B447-B
call for avail ORIG ea.

69 390GT SMOG PUMP PULLEY, with A-C,
(# C9OE-9C480-A) p/n C9OZ-9B447-A
$ 185.00 American Repro ea.

68/70 428CJ/SCJ SMOG PUMP PULLEY, without A-C,
(# C8AE-9C480-A) p/n C8AZ-9B447-B
$ 175.00 ORIG ea.

69/70 428CJ/SCJ SMOG PUMP PULLEY, with A-C,
(# C9OE-9C480-A) p/n C9OZ-9B447-A
$ 185.00 American Repro ea.

68 Shelby 428PI/428CJ SMOG PUMP PULLEY, with A/C,
68 SHELBY GT500 and GT500KR
(# C8AE-9C480-B) P/N C8AZ-9B447-D
call for avail ORIG ea.

basic 9B452
68/70 428CJ/SCJ & 390GT BRACKET, smog pump adjustment arm, has all correct markings (# C8AE-B) $ 165.00 American Repro ea.

basic 9B466
68 428CJ EMISSION HOSE SET, includes all 3 correct inked marked hoses $ 175.00 American Repro set

69/70 428CJ/SCJ EMISSION HOSE SET, includes all 3 correct inked marked hoses $ 175.00 American Repro set

basic 9B471
68/70 428CJ/SCJ & 390GT Thermactor Tube Nut & Ferrules, 8 required set of 8 $ 64.00 American Repro set

67/70 428CJ/SCJ & 390GT Thermactor Tube cylindar head plugs sold in sets of 8
only used when there is no emission system installed
$ 56.00 N.O.S. set

basic 9C475
68/70 428CJ/SCJ & 390GT HOSE ELBOW, attaches to rear of smog pump
includes 2 attaching bolts
$ 32.50 ORIG ea.

basic 9A486

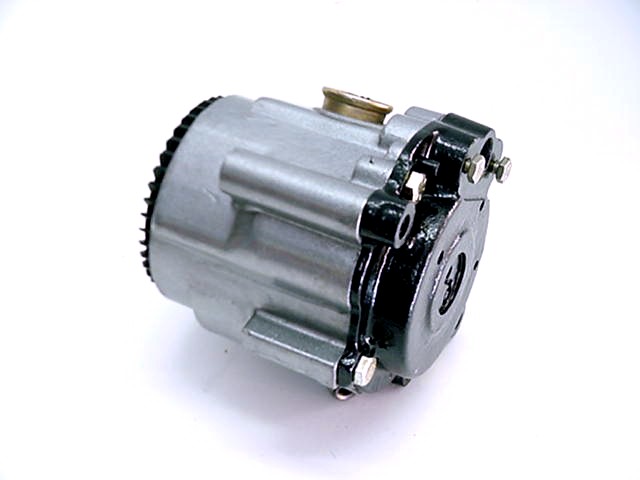

68/70 428CJ/SCJ & 390GT SMOG PUMP, rebuilt & Detailed correct original, also includes new white fan blade and new yellow dichromate plated check valve assembly
This pump IS NOT the incorrect, newer stlye that many vendors pass off as correct.
original p/n C8AZ-9A486-A
call for avail ORIG ea.

basic 9C472
68/71 428CJ/SCJ & 390GT
B302, B429
429CJ/SCJ
White Fan Blade, Smog Pump 2 piece assembly,
white nylon plastic as original,
(replaces p/n C8AZ-9C472-A)
$ 69.50 American Repro ea.

basic 9A429 & 9C429
68/71 428CJ/SCJ & 390GT
B302, B429
429CJ/SCJ
Presure Relief Valve assembly, Smog Pump
(p/n C8AZ-9A429-AR)
$ 60.00 American Repro ea.

68/70 428CJ/SCJ & 390GT
B302, B429
429CJ/SCJ
Plastic Calibration Insert, Relief Valve, Smog Pump, correct blue color
(p/n C8AZ-9C429-AR)
$ 17.50 American Repro ea.

basic 9A487
66/67 428PI & 390GT CHECK VALVE, anti back-fire, 3/4" nipple, 2 required
(# C6AE-9A487-A)
$ 125.00 American Repro ea.

68/70 428CJ/SCJ & 390GT CHECK VALVE, anti back-fire, 5/8" nipple, 2 required
(# C8AE-9A487-A)
$ 125.00 American Repro ea.

misc.
68/70 428CJ/SCJ EMISSION HOSE CLAMP Set, includes: 6 correct colored and numbered "WHITEK" clamps.
Date Codes available: 2/68, 4/68, 2/69
Note:These clamps and are NOT refurbished used clamps.
$ 47.95 N.O.S. kit

68/70 428CJ/SCJ SMOG PUMP MOUNTING HARDWARE, includes 1 spacer, 1 long bolt, & 1 yellowed pump adjusting bolt BK-17A $ 25.95 American Repro kit
